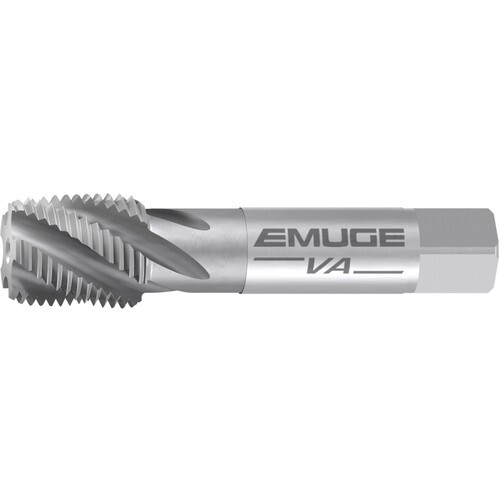

Pipe Tap; 1″ -11.5 × 3-3/4″ OAL ; HSSE ; Bright ; NPTF
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 11.5 | Chamfer | 2P-3P |
| Thread Standard | NPTF | Coating | Uncoated |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 3-3/4″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1-3/4″ | Standard | ANSI |
| Connection Diameter Machine Side (DCONMS) | 1-1/8″ | Series/List # | AW483000 |
| Flute Type | Spiral | Thread Size | 1″ - 11.5 |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • Rekord KEG D-VA slow spiral style is best suited for stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
