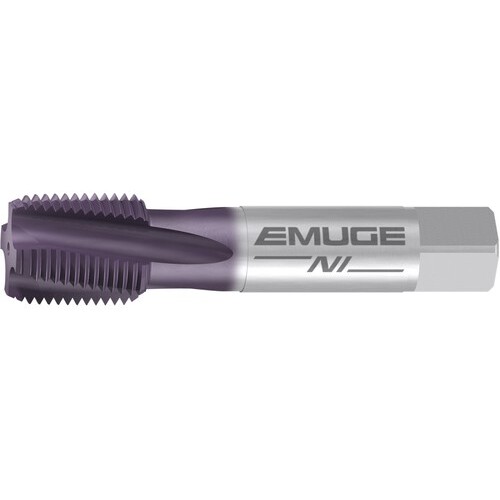

Pipe Tap; 1/16″ -27 × 2.13″ OAL ; HSSE ; TiCN ; NPT
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/16″ | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 27 | Chamfer | 2P-3P |
| Thread Standard | NPT | Coating | TiCN |
| Flute Helix Angle (FHA) | 10 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 2.13″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.69″ | Standard | ANSI |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Series/List # | AW79J400 |
| Flute Type | Spiral | Thread Size | 1/16″ - 27 |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • Rekord KEG R10-NI pipe tap is a slow spiral design for NPT or NPTF through and blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
