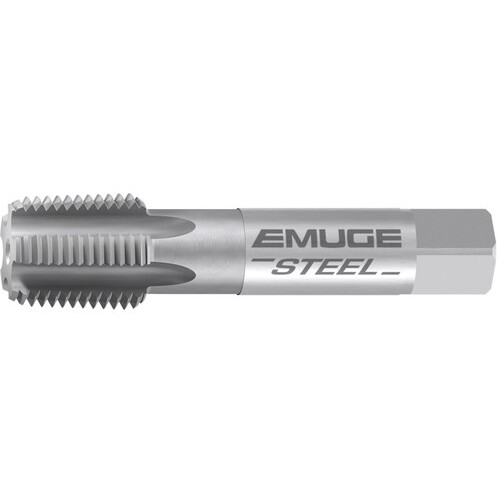

Pipe Tap; 3/4″ -14 × 3-1/4″ OAL ; HSSE ; Bright ; NPTF
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 14 | Chamfer | 2P-3P |
| Thread Standard | NPTF | Coating | Uncoated |
| Overall Length (OAL) | 3-1/4″ | Cutting Edge Material | HSSE |
| Thread Cutting Part Length (THL) | 1.38″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.906″ | Standard | ANSI |
| Flute Type | Straight | Series/List # | AW181000 |
| Coolant Supply Property (CSP) | External | Thread Size | 3/4″ - 14 |
Product Features
| Remarks | • Rekord KEG straight flute NPT/NPTF pipe tap for through & blind hole applications in short chipping cast iron, short chipping brass also steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
