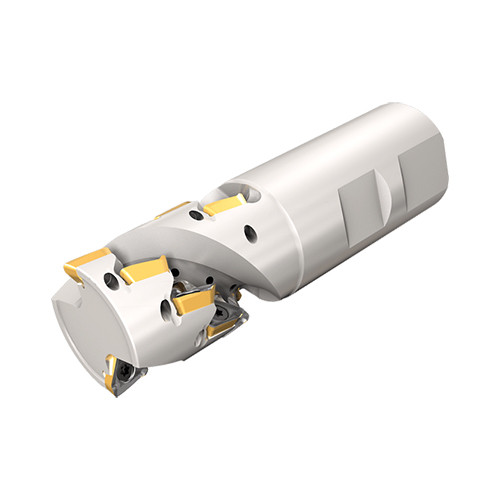

HM390 TPKD125-1.6-2-W1.25

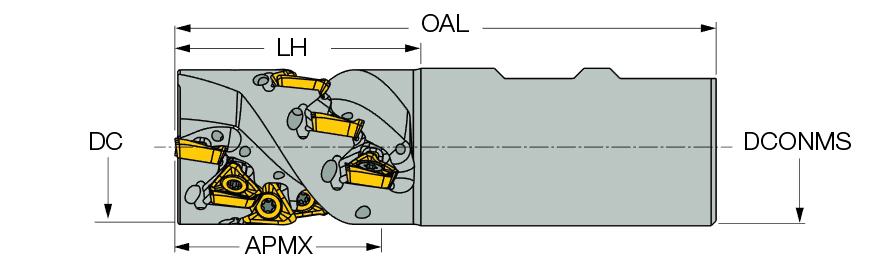

Indexable End Mill; 1-1/4″ Dia. × 1.653″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 2 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Weight of Item (WT) | 2.05 Lbs |
| Cutting Diameter (DC) | 1-1/4″ | Head Length (LH) | 2.22″ |
| Cutting Item Count (CICT) | 12 | Functional Length (LF) | 3.359″ |
| Depth of Cut Maximum (APMX) | 1.653″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 4-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Shouldering | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 1003 | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Extended flute endmills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than 0.063 tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + 0.02. |
Shipping Info
Package Weight
1.431
