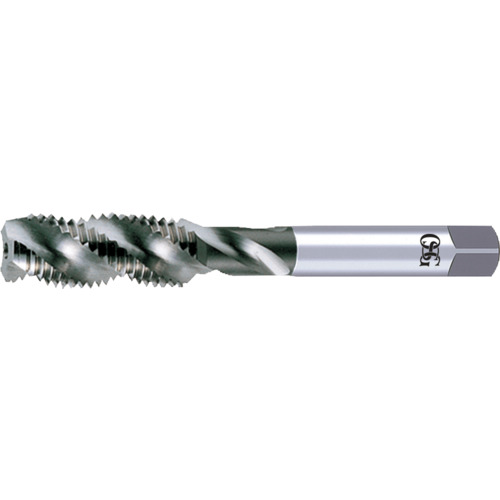

M2X0.4 STI D2 2FX
| Tool Type | STI Tap | Chamfer | 2.5P-3P |
| Style | Semi-Bottoming | Coating | Uncoated |
| Thread Diameter Size (TDZ) | M2 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | D2 | Thread Pitch (TP) | 0.4 mm |
| Thread Standard | Metric | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 12 mm | Measurement Type | Metric |
| Overall Length (OAL) | 46 mm | Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Cutting Edge Material | HSS | Series/List # | S109 |
| Flute Count (NOF) | 2 | Thread Size | M2 × 0.4 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.40000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
