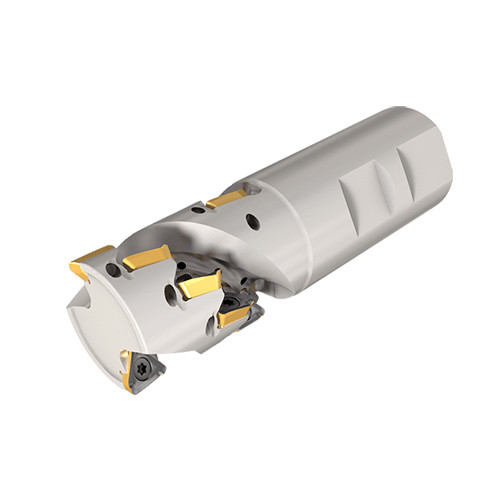

HM390 TPK D25-28-2-W25-10
Indexable End Mill; 25 mm Dia. × 28 mm LOC × 25 mm Shank Dia. × 95 mm OAL ; 2 FL ; Weldon Shank ; 90 Degrees

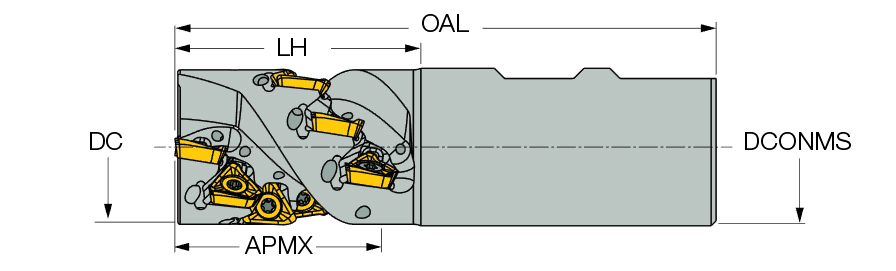

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 63 mm |
| Cutting Item Count (CICT) | 8 | Tool Type | 90° Extended flute shell mill |
| Depth of Cut Maximum (APMX) | 28 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 95 mm | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Shouldering | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 1003 | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.3 kg |
Product Features
| Family Description | Extended flute endmills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than 2 mm, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info |
Shipping Info
Package Weight
0.913
