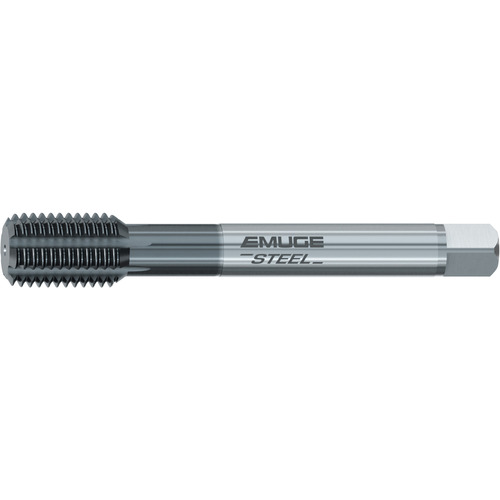

STI Tap; 7/16″ -20 × 3.937″ OAL ; Bottoming ; HSSE ; TiCN ; UNF ; 3BX
| Tool Type | STI Tap | Chamfer | 2P-3P |
| Style | Bottoming | Coating | TiCN |
| Thread Diameter Size (TDZ) | 7/16″ | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3BX | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Threads per Inch (TPI) | 20 | Standard | DIN | ANSI |
| Overall Length (OAL) | 3.937″ | Series/List # | CU929000 |
| Cutting Edge Material | HSSE | Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. |
| Applicable Material | | Universal Materials | |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.112
