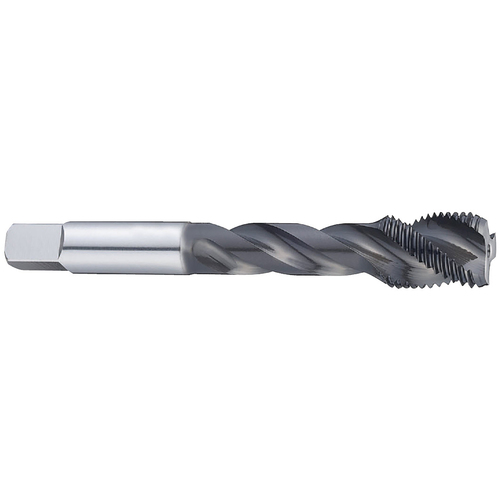

NO 10-24 2B STI SP FL TAP-HARDSLICK

| Tool Type | STI Tap | Coating | HL |
| Style | Straight | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #10 | Flute Helix Angle (FHA) | 40 Degrees |
| Thread Tolerance Class (TCTR) | 2B | Shank Type | Square |
| Thread Standard | UNC | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.433″ | Usable Length (LU) | 1″ |
| Threads per Inch (TPI) | 24 | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2-1/2″ | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Edge Material | HSSE | Standard | 322 |
| End Shape | Bottoming | Length Group | 2.5xD |
| Flute Count (NOF) | 3 | Series/List # | ST |
| Chamfer | 1.5P-2P | Thread Size | #10 - 24 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
