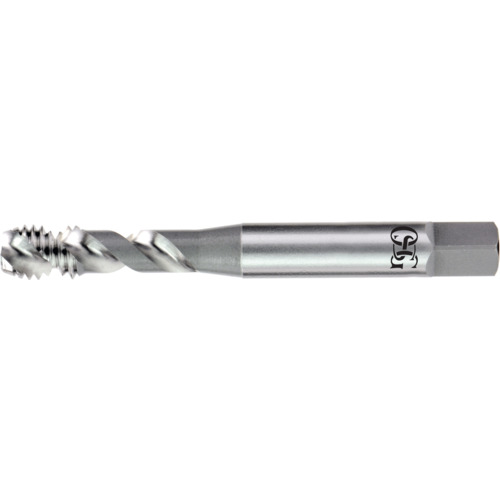

5/16-18 H3 2FL SP FL 2.5P HYPRO AL
| Tool Type | STI Tap | Cutting Edge Material | HSSE |
| Style | Semi-Bottoming | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 5/16″ | Chamfer | 2.5P-3P |
| Thread Tolerance Class (TCTR) | H3 | Usable Length (LU) | 1.251″ |
| Thread Standard | UNC | Measurement Type | Inch |
| Threads per Inch (TPI) | 18 | Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Overall Length (OAL) | 2.94″ | Thread Size | 5/16″ - 18 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.55000
Package Weight
0.075
