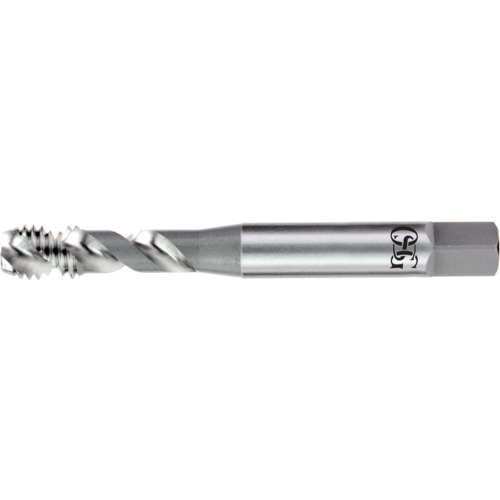

8-32 H2 2FL SP FL 2.5P HYPRO AL STI
| Tool Type | STI Tap | Cutting Edge Material | HSSE |
| Style | Semi-Bottoming | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | #8 | Chamfer | 2.5P-3P |
| Thread Tolerance Class (TCTR) | H2 | Usable Length (LU) | 0.937″ |
| Thread Standard | UNC | Measurement Type | Wire Gauge |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Overall Length (OAL) | 2.38″ | Thread Size | #8 - 32 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.035
