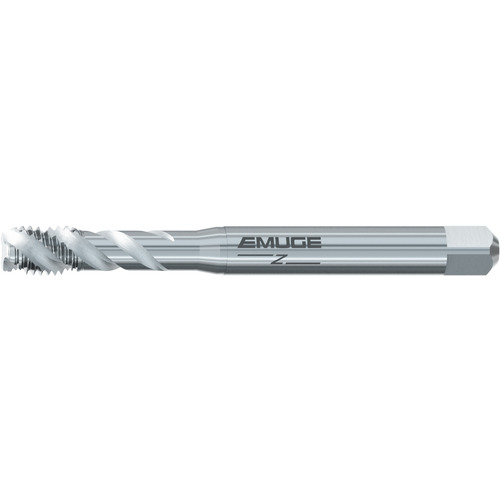

STI Tap; #2 -56 × 2.205″ OAL ; Bottoming ; HSSE ; Bright ; UNC ; 3B ; Series U513510
| Tool Type | STI Tap | Coolant Supply Property (CSP) | External |
| Style | Bottoming | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | #2 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | 3B | Flute Type | Spiral |
| Thread Standard | UNC | Usable Length (LU) | 18 mm |
| Threads per Inch (TPI) | 56 | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2.205″ | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Edge Material | HSSE | Standard | DIN | ANSI |
| Applicable Material | | Stainless Steel | | Series/List # | BU513510 |
| Chamfer | 1.5P-2P | Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. |
| Coating | Uncoated | Thread Size | #2 - 56 |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.002
