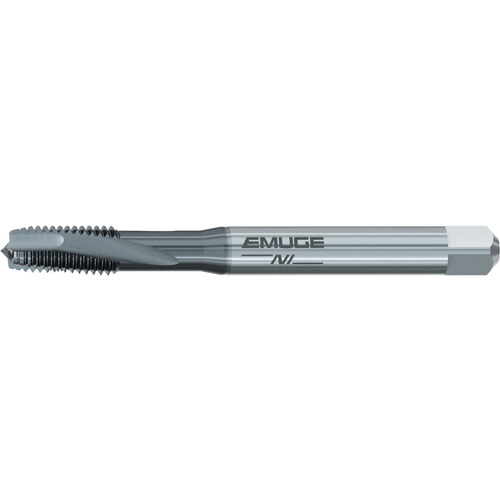

STI Tap; 1/4″ -28 × 3.543″ OAL ; Plug ; 3 FL ; HSSE-PM ; TiCN ; UNF ; 3BX ; Series U35J411
| Tool Type | STI Tap | Coating | TiCN |
| Style | Plug | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3BX | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | UNF | Usable Length (LU) | 32 mm |
| Threads per Inch (TPI) | 28 | Measurement Type | Inch |
| Overall Length (OAL) | 3.543″ | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Cutting Edge Material | HSSE-PM | Standard | DIN | ANSI |
| Flute Count (NOF) | 3 | Series/List # | BU35J411 |
| Applicable Material | | Super-Alloys / Titanium | | Remarks | • Rekord C-NI plug style taps with Advanced Left-Hand Helical Flute Form and chamfer geometry combine to optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security. • Longer tool life and more consistent thread quality. • HSSE-PM powdered metal base material for additional wear resistance |
| Chamfer | 2P-3P | Thread Size | 1/4″ - 28 |
Product Features
| Remarks | • Rekord C-NI plug style taps with Advanced Left-Hand Helical Flute Form and chamfer geometry combine to optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security. • Longer tool life and more consistent thread quality. • HSSE-PM powdered metal base material for additional wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.0616
