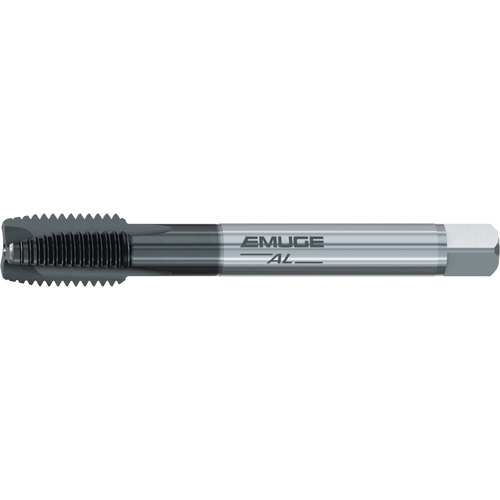

STI Tap; 3/8″ -24 × 3.937″ OAL ; Plug ; 2 FL ; HSSE ; GLT-8 ; UNF ; 3B ; Series U20S810
| Tool Type | STI Tap | Chamfer | 4P-5P |
| Style | Plug | Coating | GLT-8 |
| Thread Diameter Size (TDZ) | 3/8″ | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3B | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF | Measurement Type | Inch |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Overall Length (OAL) | 3.937″ | Standard | DIN | ANSI |
| Cutting Edge Material | HSSE | Series/List # | U20S810 |
| Flute Count (NOF) | 2 | Remarks | • Rekord B-AL tap is designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. |
| Applicable Material | Aluminum / Non-Ferrous Materials | Thread Size | 3/8″ - 24 |
Product Features
| Remarks | • Rekord B-AL tap is designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.088
