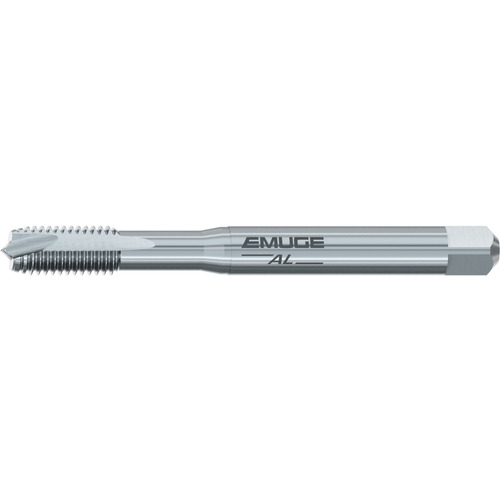

STI Tap; M5 × 0.8 mm × 80 mm OAL ; Plug ; 2 FL ; HSSE ; Bright ; Metric ; 6H mod ; Series 0204500
| Tool Type | STI Tap | Coating | Uncoated |
| Style | Plug | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M5 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 6H mod | Thread Pitch (TP) | 0.8 mm |
| Thread Standard | Metric | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | HSSE | Standard | DIN |
| Flute Count (NOF) | 2 | Series/List # | B0204500 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Remarks | • Rekord B-AL tap is a plug style tap designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. |
| Chamfer | 4P-5P | Thread Size | M5 × 0.8 |
Product Features
| Remarks | • Rekord B-AL tap is a plug style tap designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
