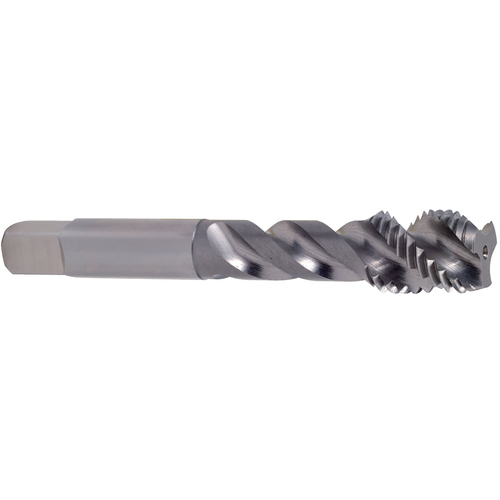

M5X0.8 D3 3FL HSS SP FL HSS STI TAP
| Tool Type | STI Tap | Coolant Supply Property (CSP) | External |
| Style | Straight | Flute Helix Angle (FHA) | 50 Degrees |
| Thread Diameter Size (TDZ) | M5 | Shank Type | Square |
| Thread Tolerance Class (TCTR) | D3 | Thread Pitch (TP) | 0.8 mm |
| Thread Standard | M | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 11 mm | Usable Length (LU) | 25.4 mm |
| Overall Length (OAL) | 63.5 mm | Measurement Type | Metric |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 6.48 mm |
| End Shape | Bottoming | Standard | 322A |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Chamfer | 1.5P-2P | Series/List # | T7425 |
| Coating | Uncoated | Thread Size | M5 × 0.8 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.03
