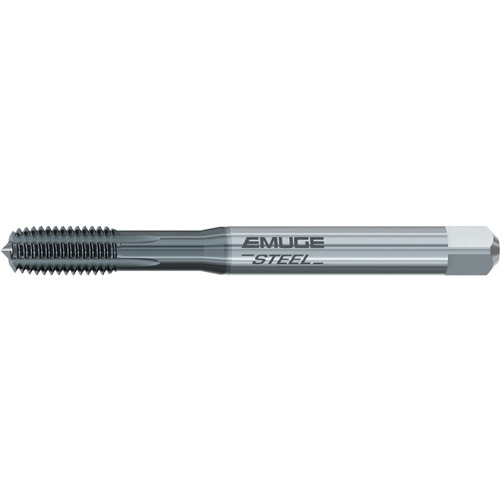

STI Tap; #6 -32 × 2.205″ OAL ; Bottoming ; HSSE ; TiCN ; UNC ; 3BX
| Tool Type | STI Tap | Chamfer | 2P-3P |
| Style | Bottoming | Coating | TiCN |
| Thread Diameter Size (TDZ) | #6 | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3BX | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Threads per Inch (TPI) | 32 | Standard | DIN | ANSI |
| Overall Length (OAL) | 2.205″ | Series/List # | BU929000 |
| Cutting Edge Material | HSSE | Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. |
| Applicable Material | | Universal Materials | |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.052
