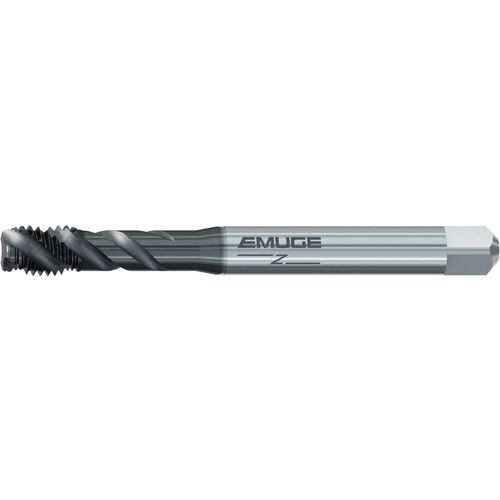

STI Tap; M6 × 1 mm × 90 mm OAL ; Bottoming ; 3 FL ; HSSE ; GLT-1 ; Metric ; 6H mod ; Series 051C400
| Tool Type | STI Tap | Cutting Direction (HAND) | Right Hand |
| Style | Bottoming | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Diameter Size (TDZ) | M6 | Thread Pitch (TP) | 1 mm |
| Thread Tolerance Class (TCTR) | 6H mod | Flute Type | Spiral |
| Thread Standard | Metric | Usable Length (LU) | 35 mm |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Flute Count (NOF) | 3 | Standard | DIN |
| Applicable Material | | Steel | Stainless Steel | | Series/List # | B051C400 |
| Chamfer | 1.5P-2P | Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. |
| Coating | TiAlN | Thread Size | M6 × 0.58 |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
