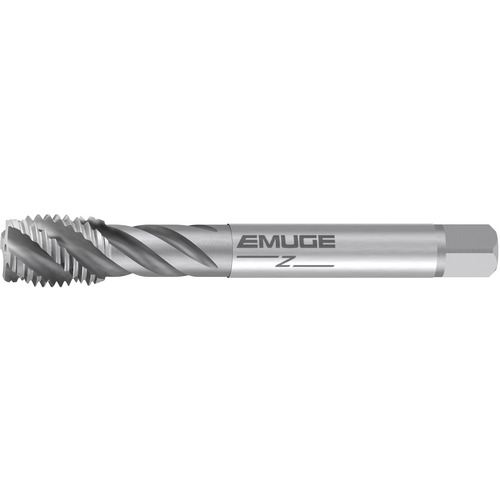

STI Tap; M12 × 1.75 mm × 110 mm OAL ; Bottoming ; HSSE ; Bright ; Metric ; 6H mod
| Tool Type | STI Tap | Coolant Supply Property (CSP) | External |
| Style | Bottoming | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | M12 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | 6H mod | Thread Pitch (TP) | 1.75 mm |
| Thread Standard | Metric | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 26 mm | Measurement Type | Metric |
| Overall Length (OAL) | 110 mm | Connection Diameter Machine Side (DCONMS) | 11 mm |
| Cutting Edge Material | HSSE | Standard | DIN |
| End Shape | Point|Chamfer | Series/List # | C0513500 |
| Applicable Material | | Stainless Steel | | Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials.
• Longer tool life and more consistent thread quality. |
| Chamfer | 1.5P-2P | Thread Size | M12 × 1.75 |
| Coating | Uncoated |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials.
• Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
