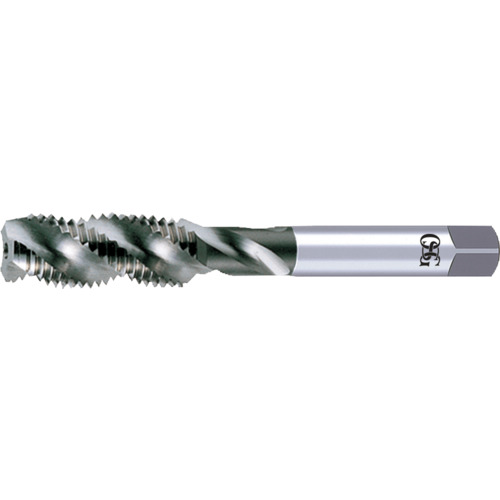

M18 2.5 Dia. - STI - D5-4 FL - Spiral Flute Semi-Bottoming Tap

| Tool Type | STI Tap | Chamfer | 2.5P-3P |
| Style | Semi-Bottoming | Coating | Uncoated |
| Thread Diameter Size (TDZ) | M18 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | D5 | Thread Pitch (TP) | 2.5 mm |
| Thread Standard | Metric | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 25 mm | Usable Length (LU) | 67 mm |
| Overall Length (OAL) | 119 mm | Measurement Type | Metric |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 17.7 mm |
| Flute Count (NOF) | 4 | Series/List # | S109 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | M18 × 2.5 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
4.80000
Package Width
1.20000
Package Height
1.10000
Package Weight
0.425
