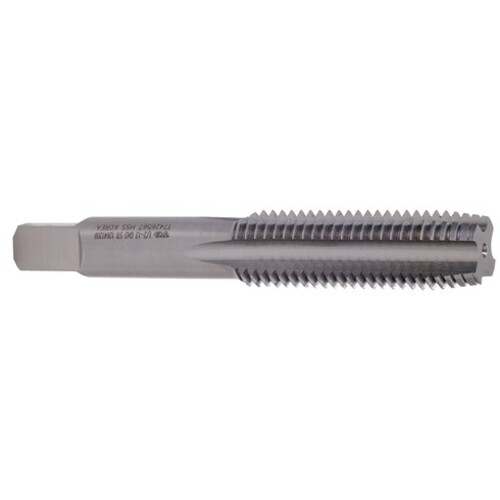

5/16-18 H3 4FL HSS STI PLUG TAP-BRT
| Tool Type | STI Tap | Coating | Uncoated |
| Style | Straight | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 5/16″ | Shank Type | Square |
| Thread Tolerance Class (TCTR) | H3 | Flute Type | Straight |
| Thread Standard | UNC | Usable Length (LU) | 1-1/4″ |
| Thread Cutting Part Length (THL) | 1-1/4″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Overall Length (OAL) | 2.94″ | Standard | 322 |
| Cutting Edge Material | HSS | Length Group | 2xD |
| End Shape | Plug | Series/List # | T7426 |
| Flute Count (NOF) | 4 | Thread Size | 5/16″ - 32 |
| Chamfer | 4P-5P |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.875
Package Width
0.75
Package Height
0.625
Package Weight
0
