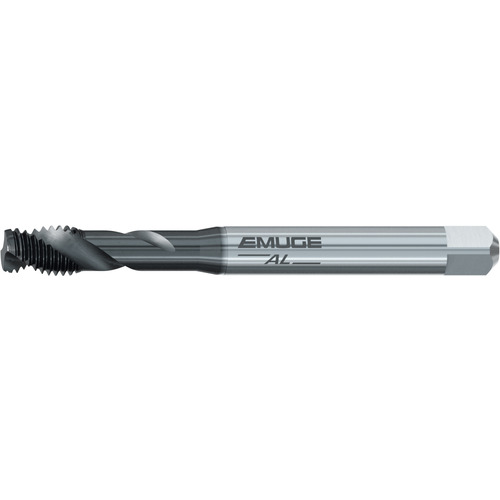

STI Tap; 5/16″ -18 × 3.937″ OAL ; Bottoming ; 2 FL ; HSSE ; GLT-8 ; UNC ; 3B ; Series U51S810
| Tool Type | STI Tap | Coolant Supply Property (CSP) | External |
| Style | Bottoming | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 5/16″ | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | 3B | Flute Type | Spiral |
| Thread Standard | UNC | Usable Length (LU) | 39 mm |
| Threads per Inch (TPI) | 18 | Measurement Type | Inch |
| Overall Length (OAL) | 3.937″ | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Edge Material | HSSE | Standard | DIN | ANSI |
| Flute Count (NOF) | 2 | Series/List # | U51S810 |
| Applicable Material | Aluminum / Non-Ferrous Materials | Remarks | • The Enorm AL design is typically for blind hole threads in long chipping aluminum alloys. • Longer tool life and more consistent thread quality. • The fast spiral flute (45°) provides good chip removal from blind holes. |
| Chamfer | 1.5P-2P | Thread Size | 5/16″ - 18 |
| Coating | GLT-8 |
Product Features
| Remarks | • The Enorm AL design is typically for blind hole threads in long chipping aluminum alloys. • Longer tool life and more consistent thread quality. • The fast spiral flute (45°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.077
