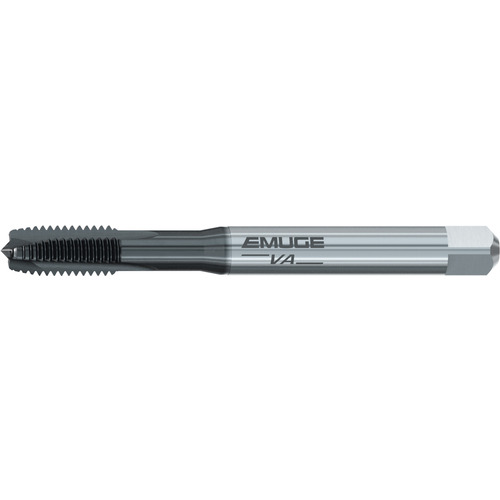

STI Tap; #12 -24 × 3.543″ OAL ; Plug ; 3 FL ; HSSE ; GLT-1 ; UNC ; 3B ; Series U20C310
| Tool Type | STI Tap | Coating | TiAlN |
| Style | Plug | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #12 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B | Usable Length (LU) | 32 mm |
| Thread Standard | UNC | Measurement Type | Wire Gauge |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Overall Length (OAL) | 3.543″ | Standard | DIN | ANSI |
| Cutting Edge Material | HSSE | Series/List # | BU20C310 |
| Flute Count (NOF) | 3 | Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. |
| Applicable Material | | Steel | Stainless Steel | | Thread Size | #12 - 24 |
| Chamfer | 4P-5P |
Product Features
| Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0594
