22J5G-2006048R01

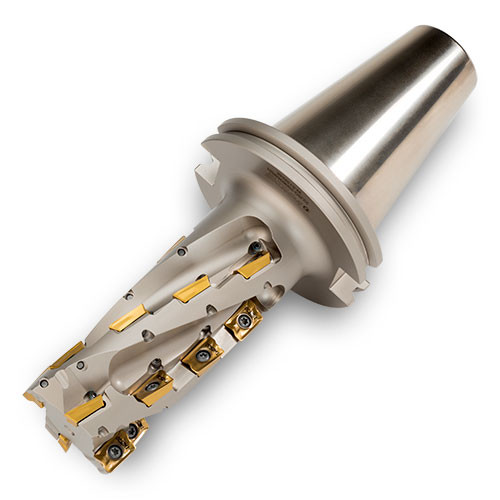

Indexable End Mill; 2″ Dia. × 4.4″ LOC × 10″ OAL × 4-7/8″ LU ; 4 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Usable Length (LU) | 4-7/8″ |
| Cutting Diameter (DC) | 2″ | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 4.4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 10″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 6″ |
Product Features
| Family Description | 1/2 Eff. / RH Helix 17 mm Insert with 2 indexes Produces smooth wall (no steps) 32-63 Ra surface finishes when engaging the wiper (WEP) Insert Corner: .015″ .031″ .062″ .093″ .118″ .125″ .157″ .187″ & .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.018
