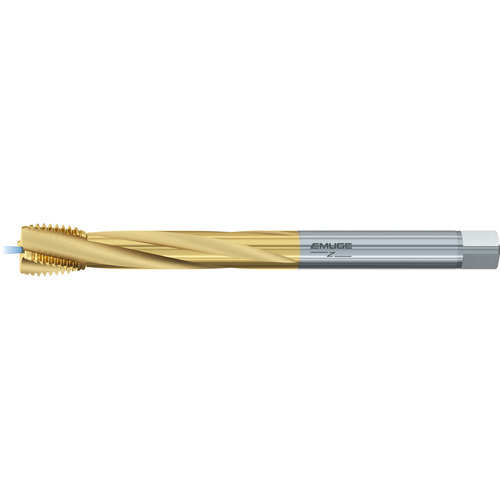

Extension Tap; M20 x2.5 mm × 190 mm ; 3 FL ; HSSE ; Metric ; 6HX
| Thread Diameter Size (TDZ) | M20 | Tool Type | Rekord D-Z |
| Thread Pitch (TP) | 2.5 mm | Standard | DIN | ANSI |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 190 mm | Coating | TiN |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Metric |
| Applicable Material | | Universal Materials | | Flute Type | Spiral |
| Cutting Edge Material | HSSE | Thread Size | M20 × 2.5 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord D tap is a slow spiral design for blind holes. Extra length taps for long reach especially in the wind turbine industry. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.4378
