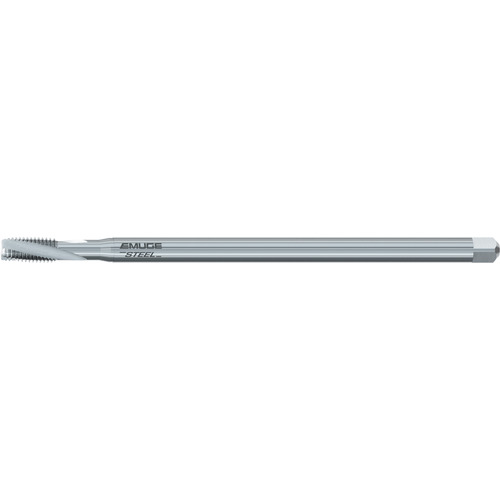

Extension Tap; M6 x1 mm × 160 mm ; HSSE ; Metric ; 6H
| Thread Diameter Size (TDZ) | M6 | Standard | DIN |
| Thread Pitch (TP) | 1 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 160 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | | Flute Type | Spiral |
| Cutting Edge Material | HSSE | Series/List # | B2461000 |
| Thread Tolerance Class (TCTR) | 6H | Thread Size | M6 × 1 |
| Tool Type | Rekord D-Steel/E |
Product Features
| Remarks | • Rekord D-STEEL/E LS tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for stainless steel and steel alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0704
