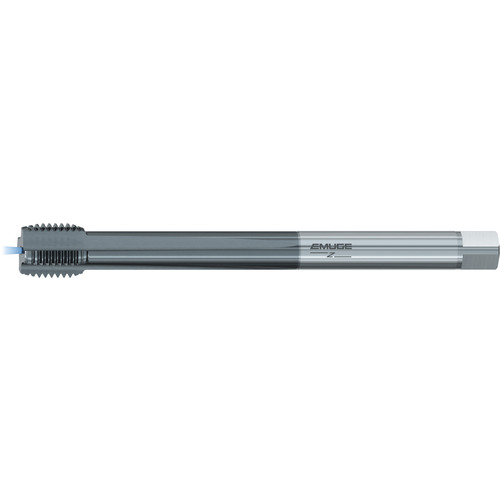

Extension Tap; M33 x3.5 mm × 290 mm ; HSSE ; Metric ; 6HX ; Series 0539401
| Thread Diameter Size (TDZ) | M33 | Standard | DIN |
| Thread Pitch (TP) | 3.5 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 290 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | 6HX | Series/List # | C0539401 |
| Tool Type | Rekord A-Z | Thread Size | M33 × 3.5 |
Product Features
| Remarks | • Rekord A-Z is a straight flute for short chipping materials in through and blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.022
