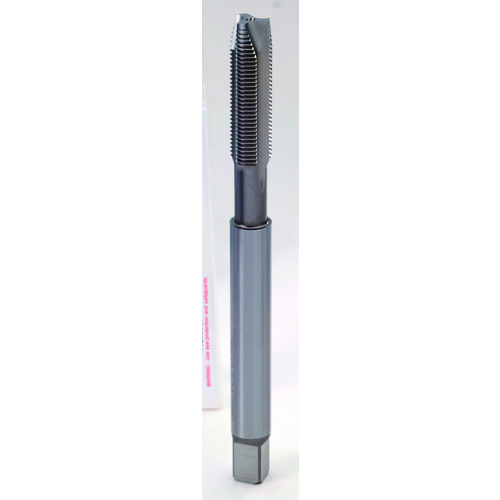

1/4-20 H3 6 OAL 2FL SP PT PLUG-TIN
| Thread Diameter Size (TDZ) | 1/4″ | Standard | 302 |
| Threads per Inch (TPI) | 20 | Chamfer | 4P-5P |
| Thread Standard | UNC | Coating | TiN |
| Overall Length (OAL) | 6″ | End Shape | Plug |
| Thread Cutting Part Length (THL) | 1″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 1″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Flute Type | Spiral Point |
| Flute Count (NOF) | 2 | Series/List # | T8236 |
| Cutting Edge Material | HSS | Thread Size | 1/4″ - 20 |
| Thread Tolerance Class (TCTR) | H3 | Shank Type | Square |
| Tool Type | General Purpose |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.375
Package Width
0.5
Package Height
0.5
Package Weight
0.084
