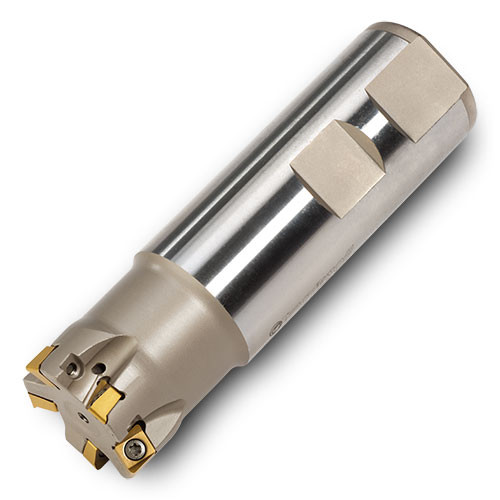

1TJ1D016025W3R00
Indexable End Mill; 0.63″ Dia. × 0.236″ LOC × 0.63″ Shank Dia. × 3.543″ OAL × 0.984″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.63″ | Usable Length (LU) | 0.984″ |
| Cutting Diameter (DC) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Protruding Length (LPR) | 1.102″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper Backdraft insert option to reduce vibration for long reach applications | Country of Origin | Germany |
Shipping Info
Package Weight
0.238
