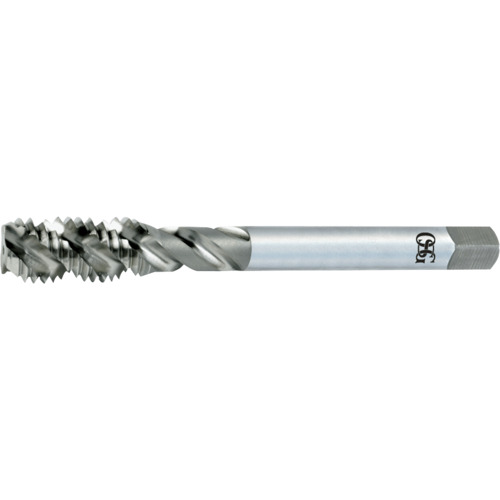

1/4-20 Dia-H3-3 FL-Bright HSS-Plug Spiral Flute Taps (Extension Taps)
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Extension Tap |
| Threads per Inch (TPI) | 20 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 4″ | End Shape | Chamfer |
| Usable Length (LU) | 1.007″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 918 |
| Cutting Edge Material | HSS | Thread Size | 1/4″ - 20 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Remarks | •Long Shank Spiral Flute Taps | Country of Origin | Brazil |
Shipping Info
Package Length
4.35000
Package Width
.40000
Package Height
.30000
Package Weight
0.05
