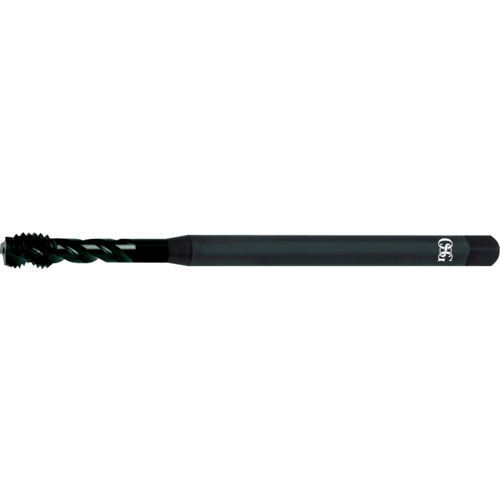

7/16-20 Dia. - H3-3 FL - HSS - Steam Oxide - Long Shank Spiral Flute Tap
| Thread Diameter Size (TDZ) | 7/16″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 20 | Cutting Edge Material | HSSCo |
| Thread Standard | NF | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 6″ | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-7/8″ | Coating | Black Oxide |
| Usable Length (LU) | 1.713″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Series/List # | 398 |
| Flute Helix Angle (FHA) | 30 Degrees | Thread Size | 7/16″ - 20 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
6.05000
Package Width
.70000
Package Height
.65000
Package Weight
0.15
