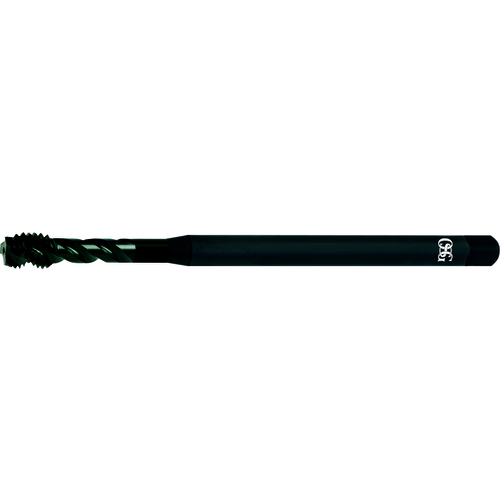

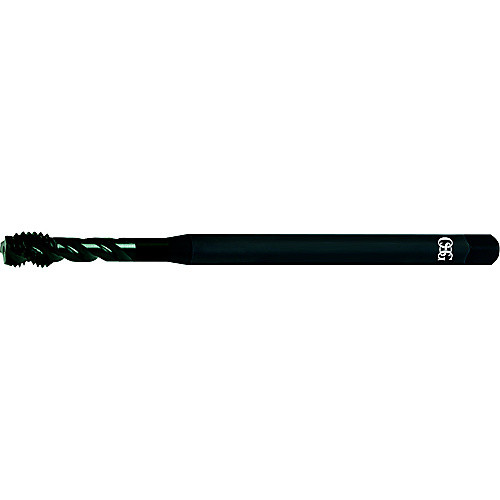

4-40 Dia. - H2-3 FL - HSS - Steam Oxide - Long Shank Spiral Flute Tap
| Thread Diameter Size (TDZ) | #4 | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 40 | Cutting Edge Material | HSSCo |
| Thread Standard | NC | Thread Tolerance Class (TCTR) | H2 |
| Overall Length (OAL) | 6″ | Chamfer | 1.5P-2P |
| Thread Cutting Part Length (THL) | 0.84″ | Coating | Black Oxide |
| Usable Length (LU) | 0.839″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Series/List # | 398 |
| Flute Helix Angle (FHA) | 30 Degrees | Thread Size | #4 - 40 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
6.05000
Package Width
.55000
Package Height
.45000
Package Weight
0.04
