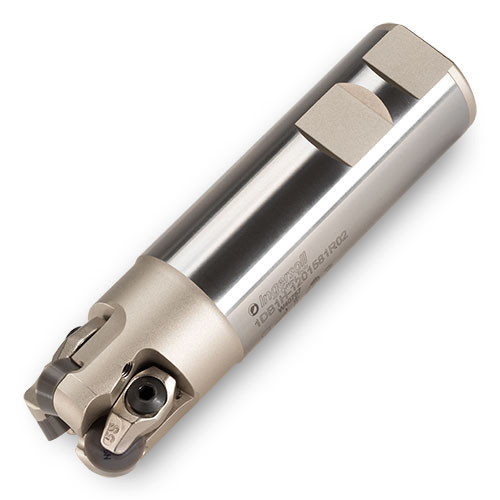

1DB1H-1201581R02
Indexable End Mill; 1-1/4″ Dia. × 1/4″ LOC × 1-1/4″ Shank Dia. × 4.72″ OAL × 1.57″ LU
| Cutting Diameter (DC/DCX) | 1-1/4″ | Usable Length (LU) | 1.57″ |
| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 1/4″ |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.72″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | | Protruding Length (LPR) | 2.46″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | dia1.25″ Diameter .250″ Max. depth of cut .500″ IC insert, single sided Secure Clamping, flat & dimple style inserts Reliable performance, strength & economy! | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.598
