15L1H045050F1R00

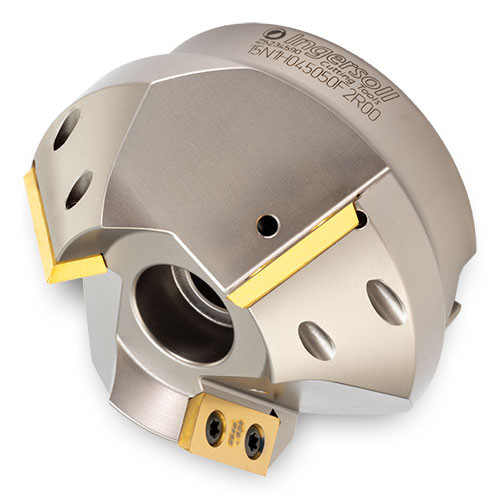

Indexable End Mill; 2.2874″ Dia. × 0.961″ LOC × 0.866″ Shank Dia. × 1.968″ OAL ; 75 Degrees
| Cutting Diameter (DC/DCX) | 2.2874″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.772″ | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.961″ | Angle | 30 Degrees |
| Overall Length (OAL) | 1.968″ | Measurement Type | Inch |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.866″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 2.2874″ |
Product Features
| Family Description | Included Angles: 150° 120° 90° 60° & 30° 22.8 mm cutting edge length | Country of Origin | Germany |
Shipping Info
Package Weight
0.902
