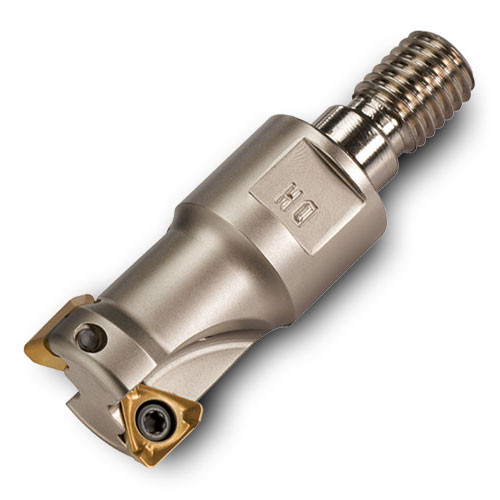

1KJ1D040043X8R00

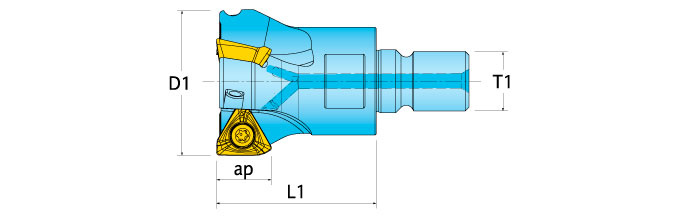

Indexable End Mill; 1.575″ Dia. × 0.276″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1.575″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.575″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.276″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 1.142″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1.693″ |
Product Features
| Family Description | Insert corners: 0.4, 0.8 & 1.6mm R | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.772
