1TG1B-10012TUR01

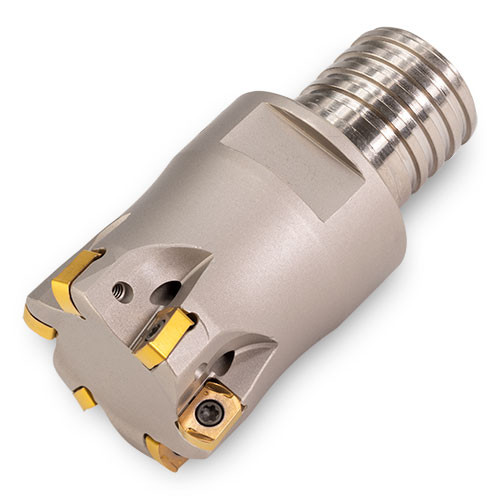

Indexable End Mill; 1″ Dia. × 0.02″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.824″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.02″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.85 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | | Hub Diameter (DHUB) | 0.945″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Corner Radius (RE) | 0.035″ |
Product Features
| Family Description | 4 mm IC Insert with 4 indexes .5 mm (.020″) Max. depth of cut Two different insert edge preparations provide application flexibility Excellent high feed performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
