1TJ1F-15073S5R01

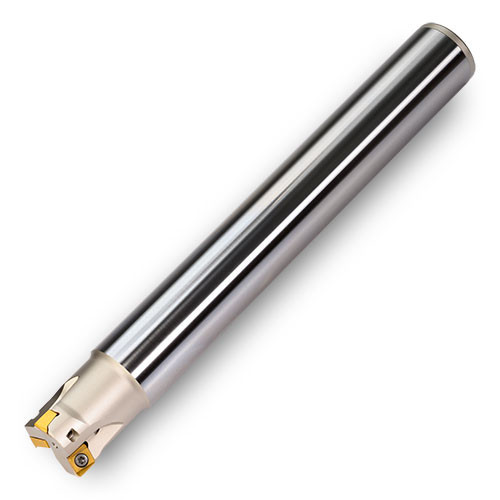

Indexable End Mill; 1-1/2″ Dia. × 0.32″ LOC × 1-1/2″ Shank Dia. × 10″ OAL × 2.9″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Usable Length (LU) | 2.9″ |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.32″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 10″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Protruding Length (LPR) | 7.34″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper | Country of Origin | USA |
Shipping Info
Package Weight
0.009
