2XJ3J-2002281R01

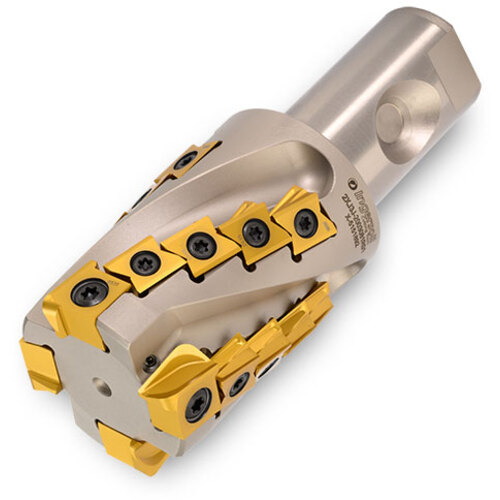

Dovetail Insert Seating for Insert Stability Face Station Insert Corners: .031″, .062″, .094″, .125″, .250″ R
| Cutting Diameter (DC/DCX) | 2″ | Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1.51″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Protruding Length (LPR) | 2-1/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 2-1/4″ |
Product Features
| Family Description | Dovetail Insert Seating for Insert Stability Face Station Insert Corners: .031″, .062″, .094″, .125″, .250″ R | Country of Origin | Usa |
