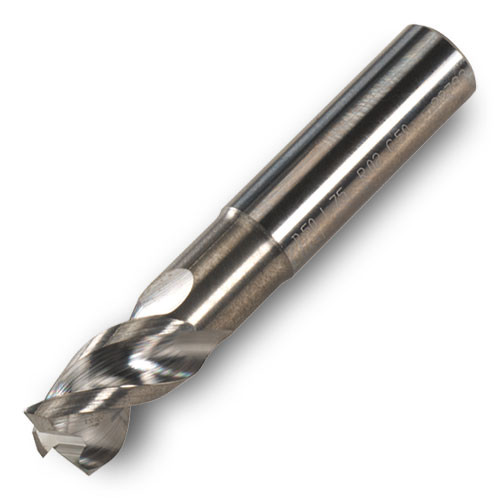

46D25038T5RQ200 IN05S
SQ End Mill; 25 mm Dia. × 38 mm LOC × 25 mm Shank Dia. × 130 mm OAL ; 2 mm RE ; 3 FL ; Carbide
| Cutting Diameter (DC) | 25 mm | Usable Length (LU) | 75 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 38 mm | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 130 mm | Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Carbide | Grade | IN05S |
| Flute Count (NOF) | 3 | Tool Type | Center Cut |
| Flute Helix Angle (FHA) | 39-41 Degrees | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
Product Features
| Family Description | Variable helix Aluminum applications Center Cutting | Country of Origin | Israel |
Shipping Info
Package Weight
1.715
