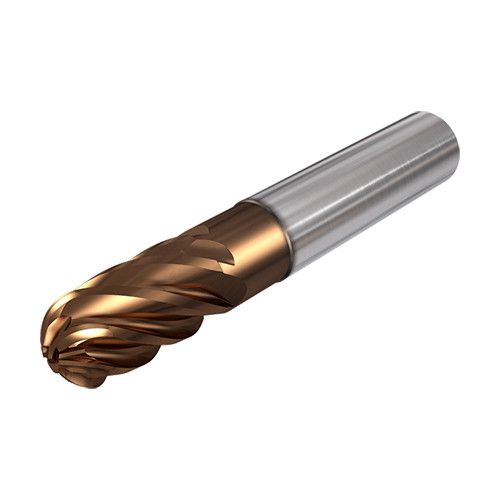

EBI-6 1-1.5C500VF6 IC608
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 6″ OAL ; 1/2″ RE ; 6 FL ; Carbide ; AlTiCrSiN

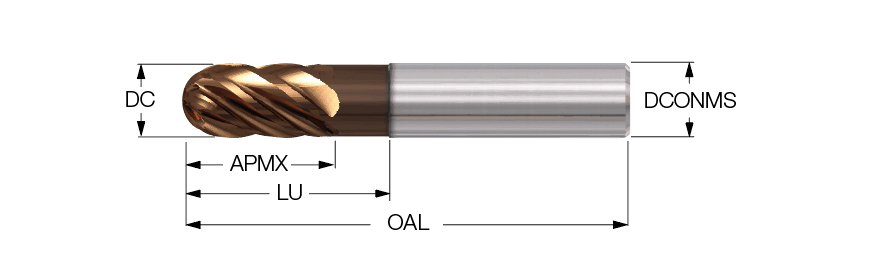

| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IC608 |
| Overall Length (OAL) | 6″ | Neck Diameter (DN) | 0.965″ |
| Cutting Edge Material | Carbide | Body Half Taper Angle (BHTA) | 15 Degrees |
| Coating | AlTiCrSiN | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 1″ |
| Usable Length (LU) | 4″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
Product Features
| Family Description | 6 flute, ball nose endmills with and without relieved necks | Country of Origin | USA |
