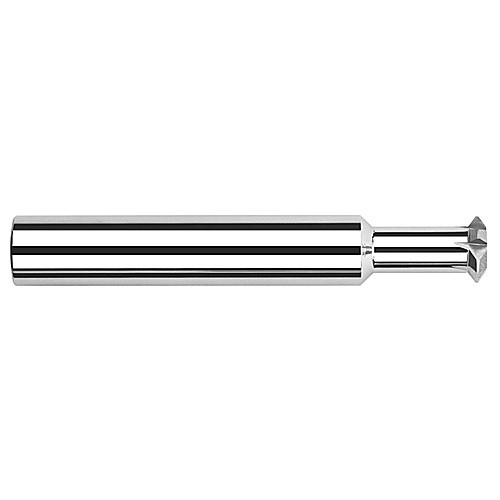

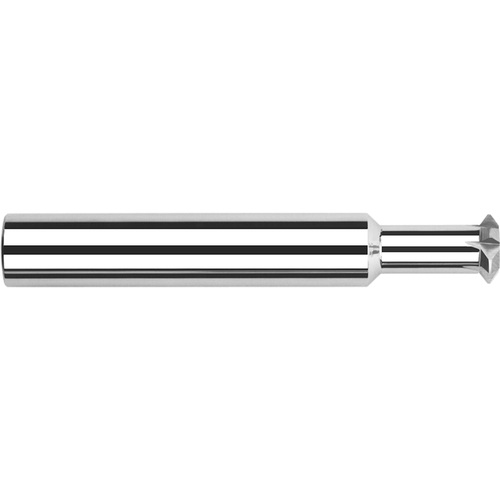

0.2500″ (1/4) Cutter DIA × 0.0820″ Width × 0.3120″ (5/16) Neck Length - 60 Degree Included Angle - 4 Flute Double Angle Shank Cutters - Tip Flat
Keyseat Cutter; 1/4″ Dia. × 1/4″ Shank Dia. × 0.082″ CW × 2″ OAL ; 4 Teeth ; 60 Degrees ; Carbide ; Round Shank ; Uncoated ; Series Specialty Profiles
| Cutting Diameter (DC) | 1/4″ | Protruding Length (LPR) | 5/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2″ | Coating | Uncoated |
| Number of Teeth | 4 | Shank Type | Round |
| Cutting Width (CW) | 0.082″ | Flute Type | Helical |
| Angle | 60 Degrees | Series/List # | Specialty Profiles |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Neck Diameter (DN) | 1/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
