MG 1212 E30 W15 MT8

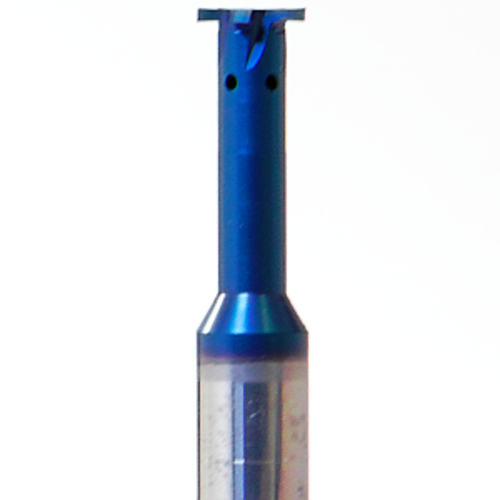

Keyseat Cutter; 12 mm Dia. × 12 mm Shank Dia. × 1.3 mm CW × 84 mm OAL ; 5 Teeth ; Carbide ; TiAlN
| Cutting Diameter (DC) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 84 mm | Coating | TiAlN |
| Corner Radius (RE) | 0.1 mm | Style | GROOVING |
| Number of Teeth | 5 | Cutting Position | Internal |
| Cutting Width (CW) | 1.3 mm | Cutting Length | 30 mm |
| Cutting Direction (HAND) | | Left Hand | Right Hand | | Measurement Type | Metric |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.269
