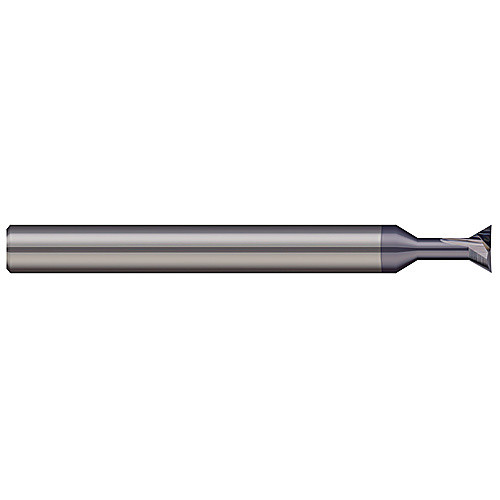

1/4″ Dia 30°-AlTiN-Dovetail SH Type Cutter
Keyseat Cutter; 1/4″ Dia. × 1/4″ Shank Dia. × 0.161″ CW × 2-1/2″ OAL ; 2 Teeth ; 30 Degrees ; Carbide ; Round Shank ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Protruding Length (LPR) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2-1/2″ | Coating | AlTiN |
| Corner Radius (RE) | 0.01″ | Shank Type | Round |
| Number of Teeth | 2 | Flute Type | Teeth |
| Cutting Width (CW) | 0.161″ | Style | Dovetail |
| Angle | 30 Degrees | Tool Type | Dovetail |
| Cutting Direction (HAND) | Right Hand | Cutting Length | 0.161″ |
| Neck Diameter (DN) | 0.17″ | Measurement Type | Inch |
Product Features
| Remarks | •Corner radii enhances tool strength and rigidity
•Engineered for superior rupture strength and exceptional machining versatility
•Manufactured with Micro 100's exclusive proprietary treating process
•Shank diameter tolerance: -.0001″ to -.0003″
•Cutter diameter tolerance: +.000″ -.002″
•Included angle tolerance: +/–1°
•Length of cut tolerance: +.020″ -.000″
•Maximum TIR: .0005″ |
Country of Origin | USA |
Shipping Info
Package Length
2.58800
Package Width
.42800
Package Height
.42800
Package Weight
0.06
