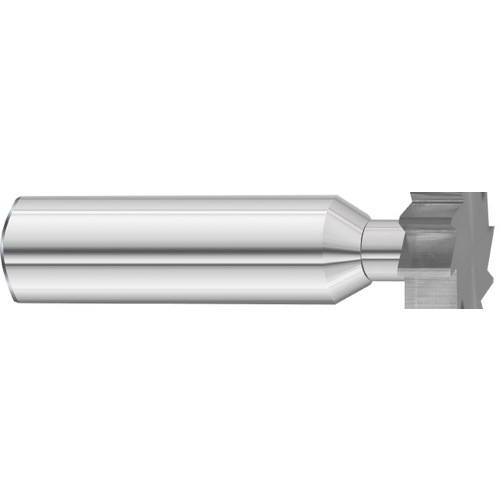

4375 AM STD:405.6250.1250 2.1250 Keyseat Cutter RH10FL

Item # FT8743405

UNSPSC: 23241631

Brand: Fullerton Tool

MFG#: 43405

Additional Canadian Tariff of 25 %

Quantity Available

Cutting Diameter (DC)

5/8″

Cutting Direction (HAND)

Right Hand

Connection Diameter Machine Side (DCONMS)

1/2″

Cutting Edge Material

Carbide

Overall Length (OAL)

‎2-1/8″

Coating

Uncoated

Number of Teeth

Shank Type

Round

Cutting Width (CW)

1/8″

Style

Woodruff Keyseat

Product Features

Remarks

‎

Carbide Keyseat Cutters (Woodruff Cutter)

Straight Flutes

Nominal Diameters

American Standard Face Widths

.5000 Inch Diameter Steel Shank

.3750 to 1.5000 Inch stocked

Standard Uncoated

Inch Based Tools

Dura Carb III

.5000 Diameter Shank Tolerance: +.0005″ -.0005″ / +.013mm -.013mm

Cutting Head Diameter Tolerance: .3750 to .7500 Dia. - +.010″/+.015″ / .8750 to 1.5000 Dia. - +.012″/+.017″

Face Width Tolerance: +.0000″ -.0005″

Neck Length: .2500″

1.1250–1.5000 Cutter Diameter are Solid Carbide

Country of Origin

USA

Shipping Info

Package Length

1.00000

Package Width

1.00000

Package Height

1.00000

Package Weight

0.145
