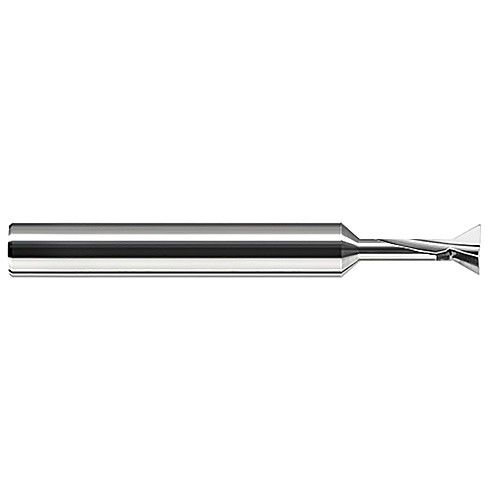

.375 DX30D DOVETAIL-SHORT REACH
Keyseat Cutter; 3/8″ Dia. × 3/8″ Shank Dia. × 1/4″ CW × 2-1/2″ OAL ; 3 Teeth ; 30 Degrees ; Carbide ; Round Shank ; Uncoated ; Series Specialty Profiles
| Cutting Diameter (DC) | 3/8″ | Protruding Length (LPR) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2-1/2″ | Coating | Uncoated |
| Corner Radius (RE) | 0.01″ | Shank Type | Round |
| Number of Teeth | 3 | Flute Type | Helical |
| Cutting Width (CW) | 1/4″ | Series/List # | Specialty Profiles |
| Angle | 30 Degrees | Cutting Length | 1/4″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Neck Diameter (DN) | 0.247″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.144
