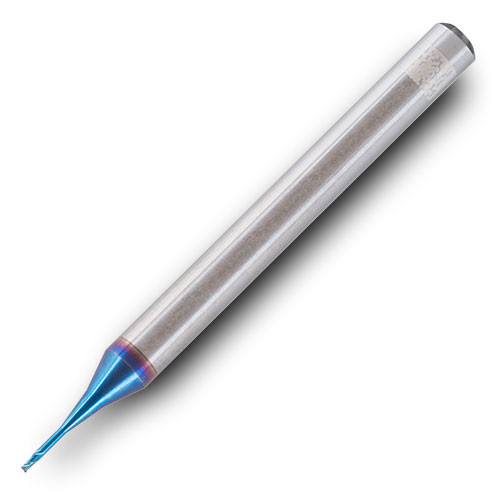

45D01525T7RB02 IN2203
Corner Radius End Mill; 1.5 mm Dia. × 2.5 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlTiCrSiN
| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 4 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 2.5 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 50 mm | Grade | IN2203 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiCrSiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| End Shape | Corner Radius |
Product Features
| Family Description | Hard submicron cemented carbide substrate for improved deformation resistance Bright blue hard PVD coating for improved oxidation, chipping, wear resistance, and wear detection | Country of Origin | Usa |
Shipping Info
Package Weight
0.042
