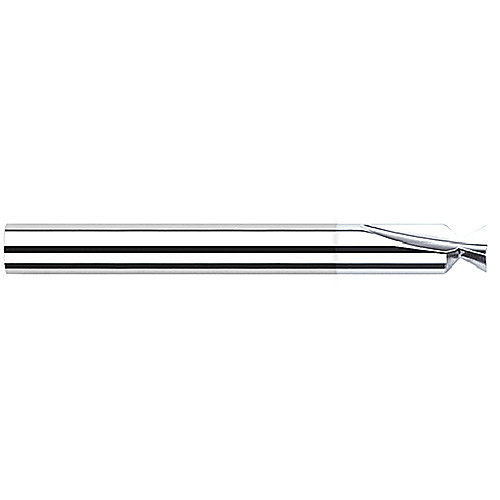

23928-C8 DOVETAIL CUTTER
Keyseat Cutter; 0.171″ Dia. × 3/16″ Shank Dia. × 0.176″ CW × 2″ OAL ; 2 Teeth ; 48 Degrees ; Carbide ; Round Shank ; TiB2 ; Series Specialty Profiles
| Cutting Diameter (DC) | 0.171″ | Neck Diameter (DN) | 0.048″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2″ | Coating | TiB2 |
| Corner Radius (RE) | 1/32″ | Shank Type | Round |
| Number of Teeth | 2 | Flute Type | Helical |
| Cutting Width (CW) | 0.176″ | Series/List # | Specialty Profiles |
| Angle | 48 Degrees | Cutting Length | 0.176″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.064
