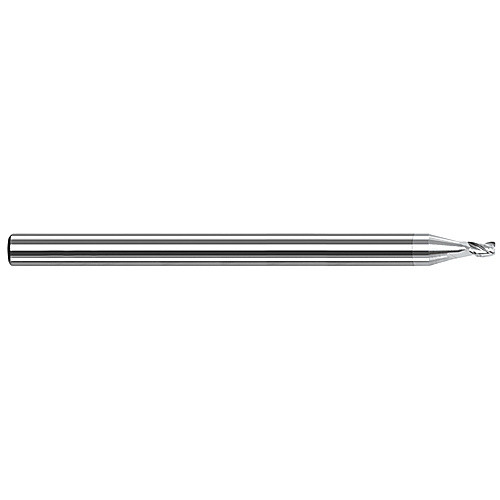

56510-C8 ORING SLOT CUTTR
SQ End Mill; 0.055″ Dia. × 0.065″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; TiB2
| Cutting Diameter (DC) | 0.055″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.065″ |
| Depth of Cut Maximum (APMX) | 0.065″ | Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiB2 | Shank Size (SS) | 1/8″ |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Single / Double End | Single End |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
