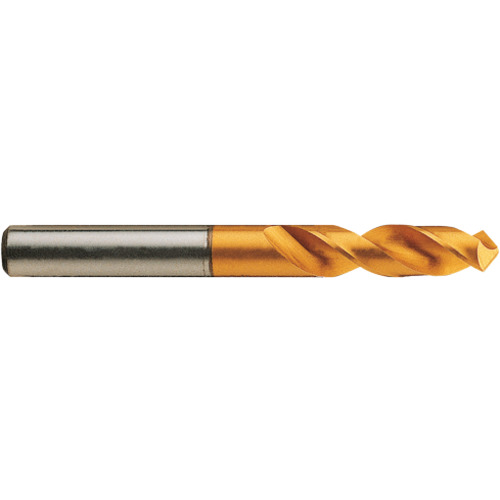

Screw Machine Drill; 5 mm Dia. × 5 mm Shank Dia. × 70 mm OAL × 26 mm Flute Length ; 120 Degrees ; HSS EX ; TiN ; Series DJ543
| Measurement Type | Metric | Flute Length | 26 mm |
| Drill Bit Size / Cutting Diameter (DC) | 5 mm | Helix Angle | 38 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1969″ | Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.1969″ | Overall Length (OAL) | 70 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5 mm | Shank Standard | h7 |
| Angle | 120 Degrees | Shank Type | Round |
| Applicable Material | | Steel | Stainless Steel | | Standard | DIN6535-HA |
| Coating | TiN | Tool Type | Twist Drill |
| L to D Ratio | Stub | Connection Diameter Machine Side (DCONMS) | 5 mm |
| Cutting Depth | 26 mm | Series/List # | DJ543 |
| Cutting Edge Material | HSS-EX |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.875
Package Width
0.625
Package Height
0.625
Package Weight
0.025
