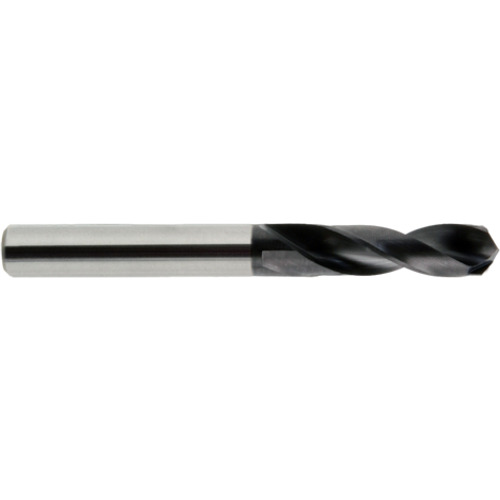

Screw Machine Drill; #4 Dia. × 1/4″ Shank Dia. × 3-1/16″ OAL × 1-1/4″ Flute Length ; 135 Degrees ; HSS-PM ; TiAlN ; Series CDRA06
| Measurement Type | Wire Gauge | Cutting Depth | 1-1/4″ |
| Drill Bit Size / Cutting Diameter (DC) | #4 | Cutting Edge Material | HSS-PM |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.209″ | Flute Length | 1-1/4″ |
| Decimal Equivalent | 0.209″ | Helix Angle | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.309 mm | Flute Count (NOF) | 2 |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #4 | Overall Length (OAL) | 3-1/16″ |
| Angle | 135 Degrees | Shank Standard | h6 |
| Applicable Material | | Steel | Super-Alloys / Titanium | | Shank Type | Round |
| Coating | TiAlN | Connection Diameter Machine Side (DCONMS) | 1/4″ |
| L to D Ratio | Stub | Series/List # | CDRA06 |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
3.625
Package Width
0.5
Package Height
0.5
Package Weight
0.036
