RE1-.3751.001.00Z7030W3

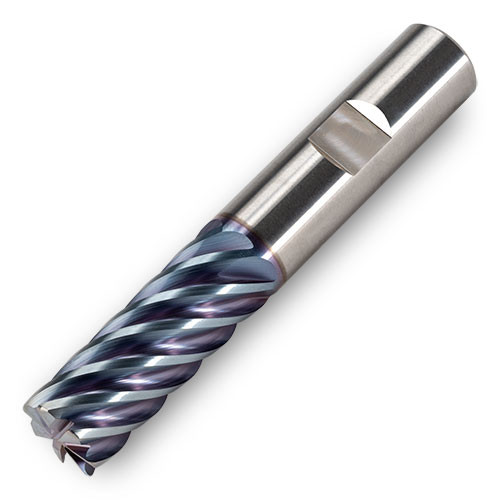

SQ End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 7 FL
| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Center Cut |
| Overall Length (OAL) | 3″ | Body Material | Carbide |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 1.469″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | |
Product Features
| Country of Origin | Usa |
